MODEL SPECIFICATIONS

OPTIONAL EQUIPMENT

Drip Pan

Keel cooling

50 Cycle operation (1500 Rpm)

3 Phase Generator wiring  (changes generator output)

When you want smooth reliable power, come to BETA MARINE for some of the most fuel efficient, quiet and trouble free marine generators available.  Each set is run under full load at our factory to ensure output.  Our claimed output for any set is the continuous rated output.  The heat exchangers have removable end caps for easy servicing.  Each generator comes with a remote panel as standard.

STANDARD EQUIPMENT

 Single bearing brushless generator 120/240v

+ 1% Solid-state voltage regulation

Circuit Breaker

1800 RPM operating speed (60 cycles)

4 Point isolation mounts

Automatic low oil pressure and high water temp shutdown system

Fuel filter

Cupro-nickel heat exchanger

Remote engine control with plug in harness

Hour meter

Oil change pump installed on engine

Air intake silencer

Stainless water injection elbow

3 year warranty on Kubota engine

Red or white epoxy paint finish

Beta Marine Generators

Authorized Dealer

PERKINS INDUSTRIAL & MARINE · WISCONSIN ENGINES · BETA MARINE CHICAGO PNEUMATIC · INGERSOLL RAND · DETROIT DIESEL · FP DIESEL · KUBOTA



Washington NC

Since 1961

(252) 946-5188

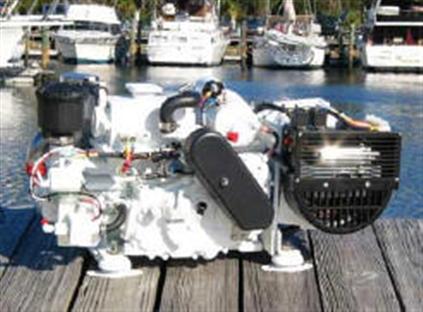

Ultra Compact Marine Generator Set
NEW GEN-SET FEATURES ULTRA-COMPACT DESIGN

Traditional direct-coupled 1,800 rpm gen-sets are often too large and heavy to fit in many small to medium-sized vessels where space is at a premium. Using a patent-pending design, Next Generation Power Engineering, Inc. offers an ultra-compact, lightweight 3.5KW diesel machine that doesn't resort to the current trend of high speed 3,600 rpm operation.

A rigid engine-to generator attaching plate, combined with a state-of-the-art helical style timing drive system, permits a lower rpm operation. This allows the engine to run at a comfortable and quiet mid-range speed of 2,800 rpm, while still providing an AC output of 60 Hz. The 7 hp Kubota single-cylinder diesel engine uses a horizontal design, making the UCM1-3.5 the lowest profile gen-set built to date.  Dimensions are 28* long x 15" wide x 15" high at a dry weight of only 160 lbs.

Many small gen-sets can't run air conditioners and motors due to their low horsepower and marginally-sized generators. This gen-set uses a heavy duty 5.0KVA generator end, allowing easy starts on up to 16,000 BTU air conditioners or pairs of smaller AC units.

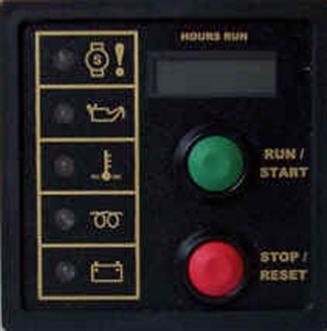

Remote Engine Control Module
